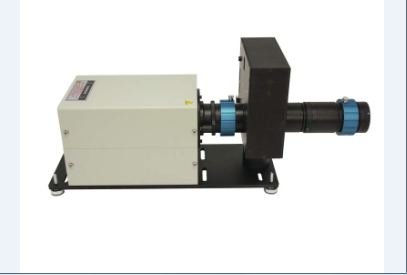

特點：

簡單光學耦合

完全集成、即插即用

光強可調

手動光開關

Features：

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter

技術參數（Technical Specs）

燈泡類型（Lamp Wattage）：TH鹵鎢燈

電功率（Lamp Wattage）：100 W

平均壽命（Average life）：500 h

發散角（Collimation Angle）：3.5 °

F/#：F/4

透鏡材料（Lens Material）：Fused Silica

透鏡范圍（Lens Transmittance Range）：200-2500 nm

Light Ripple：< 0.07 % rms

輸入（Power Requirements）：200-240 VAC, 50/60 Hz

濾光片尺寸（Filter Size）：25.4 mm

濾光片輪（Filter Wheel）：Six Positions (Order Filters Separately)

Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to

close off the light path, blocking any light output from the system.

This allows the user to be protected from UV radiation when light

output is not required, such as warming up the lamp while preparing

a setup or making a minor change in setup, without frequent and

unnecessary restarts of the lamp.

光學開關

光學開關用于關閉光路，不需要光照時保護使用人員免受紫外線輻射，

比如：預熱光源、安裝光學元件，無需頻繁開關光源。

Integrated Six Position Filter Wheel

A filter wheel is integrated into the assembly of the THL100.

Up to six order-sorting or neutral density filters can added

(1.0 in or 25.4 mm diameter, 0.2 in. or 6 mm thickness) and filters

can be changed.

六檔濾光片輪

六檔濾光片輪，可以安裝1-6個不同濾光片，直徑25.4mm（1英寸）,便于濾光片。

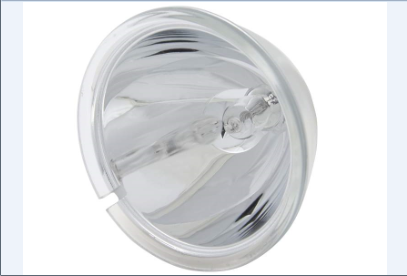

100 W TH lamp

100W鹵鎢燈燈泡

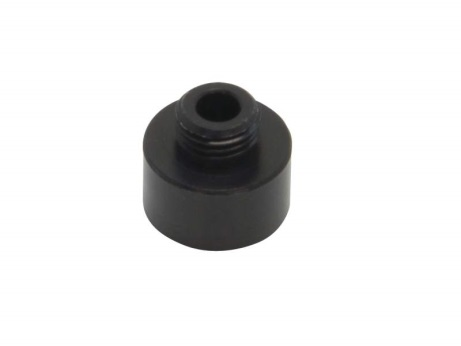

光、光纖耦合接口（Optical Coupling Accessories）

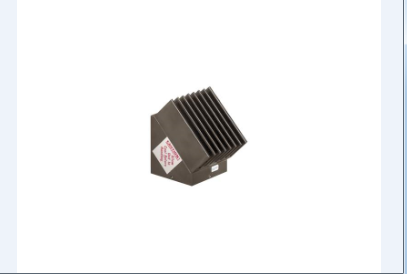

360°光路轉向器

360°旋轉，鍍ALMgF2增反膜，光譜范圍200-2500nm，用于寬譜輸出。





Full Reflector Beam Turning Mirror, 200-25,00 nm

The Full Reflector Beam Turning Mirror is are coated with an AlMgF2

coating optimized to increase reflectivity in the ultraviolet. It is useful

from 200 nm to 30 μm spectral range. Use it when broadband output is needed.
